| Material | : Extruded Aluminium | |
| Coating | : Thermoset Powder Coating - 60 um | |
| : Anodised - 20 um | ||
| Blade Size | : 90.0 x 12.0mm | - Aerofoil Blade |
| : 115.0 x 15.0mm | - Aerofoil Blade | |
| Colours | : Powdercoated | - Gloss White |
| - Gloss Birch White | ||
| - Satin White | ||
| - Wood Grain | ||
| : Anodised | - Natural | |
| : Custom colour | - Dulux powdercoating range | |
| Stile size | : 60 x 30.0mm | |
| Mid Rail Size | : 82.0 X 26.0mm - 90.0mm Blade | |
| : 95.0 x 26.0mm - 115.0mm Blade | ||
| Control Style | : Clearview | |

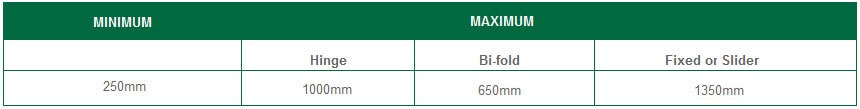

| Panel Height | : Maximum Height | : 3600mm | |
| Recommendation | : Maximum Height | : 1950mm | |
| : Without a divider rail | |||
 | |||
| Panel Weight | : 13.8 kg/m2 | ||
| This is approximate only and based on panels with no framing or H/ware attached. | |||
| Framing | : L-frame | : Trim Angle | -25 x 12 |
| :T-post | -25 x 25 | ||
| Fixed in Place Channels | : 34(INT) x 48 - Top Channel | ||
| : 33(INT) x 24 - Bottom Channel | |||
| Hinges | : Hirline Hinge - 89mm Fixed Pin | ||
| Pivot Hinge | |||
| All Hinges used are Stainless Steal. | |||
Create and control with Aluminium Shutters. Aluminium Shutters has been designed as a modern, functional shutter which is aesthetically appealing for both exterior and interior use.
Using only the highest quality of finishes which is backed by a 7 year warranty, Aluminium Shutters will create maintenance free durability and style to your home, office, or commercial environment.
Open or closed blades - at your control.
Control Your Access
Control Your Access
Use Aluminium Shutters for patios, balconies, outdoor dining areas, verandahs, carports or internal and external window coverings.
Choose Your Options
To adjust blade angle simply tilt any blade as they are
joined by a fine rear control bar. Alternatively you can
have the fixed blade option - request Aluminium Screening (inset).
Keyable Handle Locks
Flush Bolts
Patio Bolts
Flyscreens
